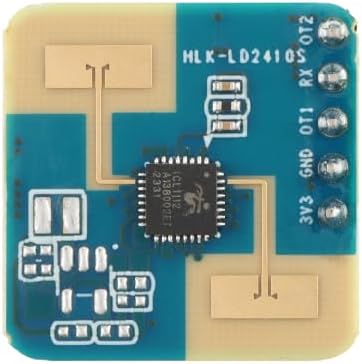

HLK-LD2410S 24G Human Presence Sensor Radar Module Mmwave Radar 8M Presence Sensor
Product details
| Management number | 239219019 | Release Date | 2026/07/14 | List Price | US$4.00 | Model Number | 239219019 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The hardware LD2410S is equipped with AloT millimeter wave sensors, high-performance 24 GHz transmitting and receiving antennas, and peripheral circuits; The low-power intelligent human sensing algorithm adopts millimeter wave sensor distance measurement technology and advanced proprietary radar signal processing and low-power control technology of ICL112 chip to achieve precise perception of motion, micro motion, and standing human body. Equipped with single-chip intelligent millimeter wave sensor SoC and intelligent algorithm firmware Ultra small sensor size: 20 mm x 20 mm Load default sensing configuration, plug and play The 24 GHz ISM frequency band can be certified by FCC, CE, and non commission spectrum regulations Powered by a 3.3V power supply, supporting a wide voltage range of 3.0V to 3.6V Average working current 0.1 mA @ 1 Hz reporting frequency Detecting targets for moving, micro moving, and stationary human bodies Real time reporting of detection results Provide visualization tools that support configuring detection distance intervals and target disappearance delay times Support sensing range division, completely shielding any interference outside the interval Close range 0.2 m induction, no detection blind spots Motion human body sensing FARTHEST distance 8m Large detection angle, with a horizontal coverage angle of ± 60 ° during wall mounted installation Support wall mounted installation Support IAP online upgrade Supported frequency band: 24-24.25GHz Support MAX sweep bandwidth: 0.25GHz MAX equivalent omnidirectional radiation power: 10dBm Supply voltage: 3.0-3.6V Size: 20mm x 20mm Environmental temperature: -40-85 ℃ Distance detection range (wall mounted, 1.5 meters high): 8m for detecting moving human targets/4m for detecting stationary human targets Average working current: 0.04-0.6mA Data refresh cycle: 1-60s
- Experience ultra-low power consumption with the HLK-LD2410S mmwave presence sensor, featuring advanced radar technology for precise human presence detection
- Detect human movement up to 8m away with the HLK-LD2410S radar sensor, equipped with intelligent algorithms for accurate mmwave sensing capabilities
- Enjoy seamless integration with GPIO and UART interfaces in the HLK-LD2410S millimeter wave presence sensor, ideal for various smart scenarios and devices
- Stay informed with real-time human presence updates from the HLK-LD2410S wave sensing detector, offering adjustable detection ranges and reporting frequencies
- Enhance your indoor environment monitoring with the HLK-LD2410S presence sensor radar, providing reliable detection of both static and moving human targets
| ASIN | B0DBSKL6BC |
|---|---|
| Model | LD2410S |
| Brand Name | EC Buying |
| Style Name | Modern |
| Item Weight | 1 Ounces |
| Output Type | Analog |
| Part Number | LD2410S |
| Manufacturer | EC Buying |
| Material Type | Metals and Semiconductors |
| Mounting Type | Wall Mount |
| Current Rating | 0.1 Milliamps |
| Measuring Range | 0.2 - 8 m (for moving human targets), 0.2 - 4 m (for stationary human targets) |
| Sensing Distance | 8 Meters |
| Measurement Accuracy | ±12.5% |
| Maximum Supply Voltage | 3.6 Volts |
| Upper Temperature Rating | 85 Degrees Celsius |
| Specific Uses For Product | security and surveillance |
